Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: TID
  • Model Number: TD-M558
  • Type: Vehicle Mouted
  • Dimensions: 145*47*190mm
  • Frequency Range: vhf:136~174MHz,220~260MHz; uhf 350~390MHz,400~490MHz
  • Storage Channel: 200
  • Talk Range: More than 10 km
  • Color: black
  • Certificate: CE
  • UFH/VHF: Support
  • Output power: 25/45/60W
  • Operating temperature: -20 to 60℃
  • Operating Voltage: 13.8V DC
  • Tone: 2 tone/5 tone
  • Compander: Support
  • Remote Kill: Support
  • Scrambler: Support

Packaging & Delivery

Packaging Details Packing in box
Delivery Time In 2 weeks after order confirmed samples ready anytime





     Wholesale TD-M558 two way 20w discount mobile walkie talkie





  • Remote Kill/stun/activate/revive
  • Wide/Narrow band setting
  • Channel Name editing
  • CTCSS/DCS Setting& Scanning
  • High/Mid/Low Power selectable






 Main functions of TD-M558 mobile car radio:



  • Menu setting
  • Work by repeater station
  • Auto repeater offset frequency
  • Remote Kill/stun/activate/revive
  • Wide/Narrow band setting
  • Channel Name editing
  • CTCSS/DCS Setting& Scanning
  • High/Mid/Low Power selectable
  • Voice compander
  • Repeater offset shift
  • DTMF/2 ton/5 tone
  • Talk around
  • Voice prompt
  • Auto Power off
  • Scrambler
  • Emergency Alarm
  • COMP function
  • Scan function
  • 1750Hz tone
  • ANI ID
  • Microphone lock/ Mic programmable menu
  • Call keypad
  • 200 channels
 Specification of TD-M558 Car radio Transceiver 60w (TD-M558):

Frequency range (TX)136-174MHz
 245-260MHz
 350-370MHz
 400-490MHz
 470-520Mhz
Frequency range (RX)136-174MHz
 245-260MHz
 350-370MHz
 400-490MHz
 470-520Mhz
Modulation modeF3E(FM)
Antenna impedance50Ω
Rated voltage13.8V DC ±15%
CurrentTransmitting    <12A
Receiving    <1.0A (Output 2W)
Frequency stability ≤±2.5PPm
Transmitting
Output powerVHF: 60W(H)   25W(Mid) 10W(Low)
 UHF: 40W(H)   25WMid) 10W(Low)
Reactance modulation  Reactance
Modulation limit25KHz±5KH, 12.5KHz±2.5KHz
Audio distortion<5%
Adjacent channel power25KHz≥65dB, 12.5KHz≥60dB
Stray radio frequency measure<-60dB
Modulation character3dB~-3dB (Modulation frequency: 300Hz~3KHz)
Receiving
CircuitryAdopt quadratic frequency conversion superheterodyne mode
Mid-frequency (1st/2nd)49MHz/450Khz
Sensitivity25KHz<0.2μV, 12.5KHz<0.25μV
Selectivityminus 6dB  25KHz<12KHz, 12.5KHz<10KHz
minus 60dB 25KHz<30KHz, 12.5KHz<24KHz
Same channel restrain>-8dB
Adjacent channel selective25KHz≥65dB, 12.5KHz≥60dB
Stray response anti-interference25KHz≥65dB, 12.5KHz≥60dB
Intermodulation anti-interference25KHz≥60dB, 12.5KHz≥55dB
Blocking≥90dB
Audio response1dB~-3dB (Modulation frequency: 300Hz~3KHz)
Audio distortion<5% (>2W)(Microphone internal resistance is 8Ω
Modulation limit

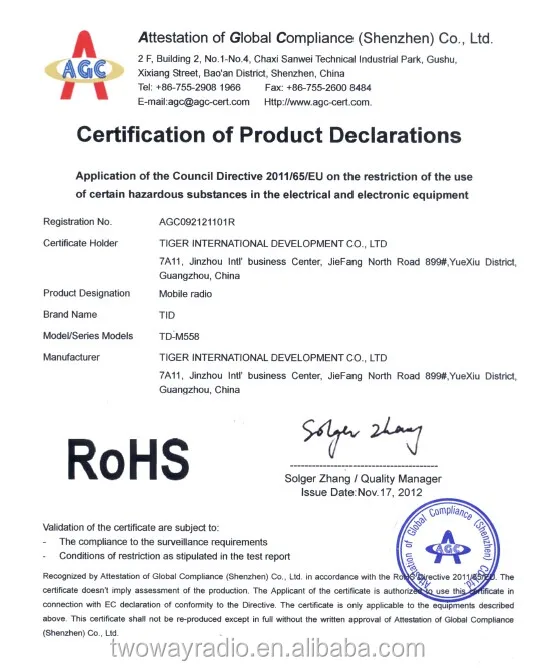

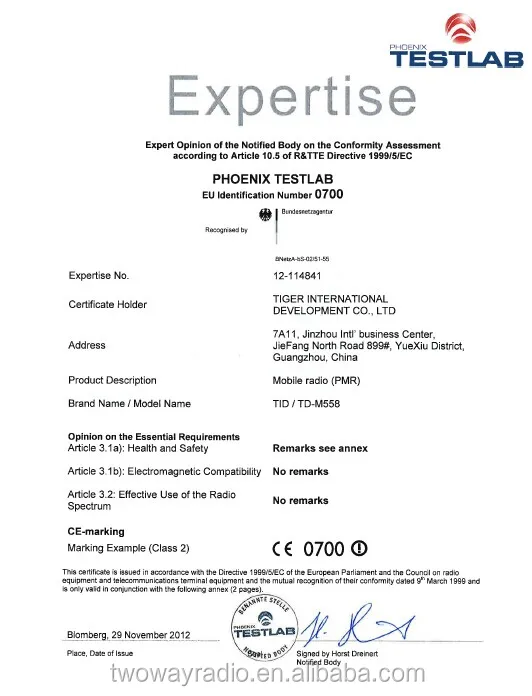

Certificate




 Payment Terms

1. 100% T/T Advance

2. 100% Western Union Advance

3. 100% Pay pal Advance



Shipping Terms

1. EX-works Guangzhou

2. EX-works Hongkong

3. EX-works Xiamen

4. EX-works Dubai



Shipping Method

The delivery can by air/Sea or by express, for small order we suggest you can consider sent by express like DHL, FedEx, UPS…





Lead time:

Most of our product have ready stock, sample order is ready any time, and bulk order depend on how many pcs you want.

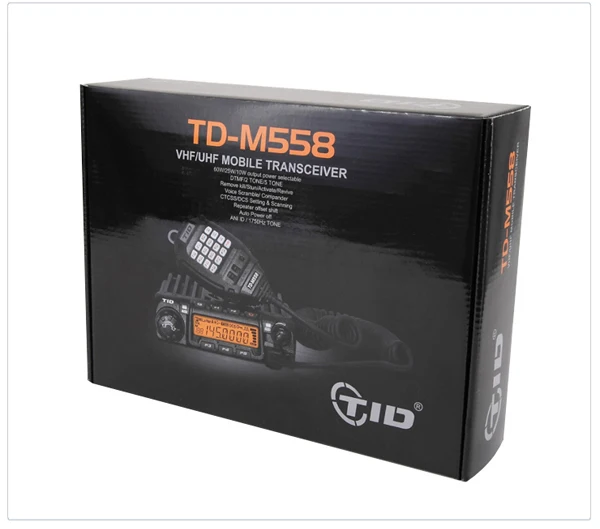

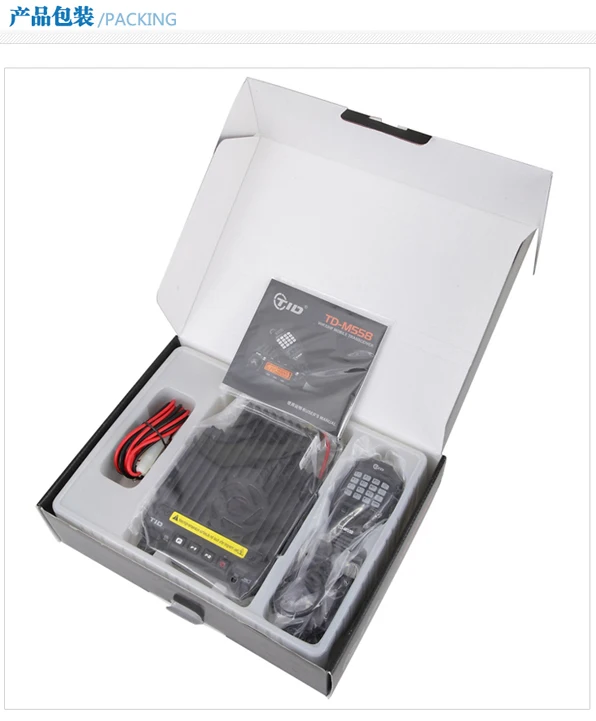

Packaging:

Unique packaging with durable ,environmental , beauty design character (plastic bag color gift box).
