Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: TID
  • Model Number: TD-Q8
  • Type: Handheld
  • Dimensions: 98.3*57*28mm
  • Frequency Range: 136-174MHz/400-470MHz
  • Storage Channel: 48
  • Talk Range: 8KM
  • Brand: TID
  • Battery: Li-ion
  • 1750HZ: Support
  • Colour: Black
  • 1750hz tone: yes
  • Battery Capacity: 2500mAh
  • PTT ID: Support
  • Warranty: 18 months
  • Power output: 8W
  • DTMF: Support

Packaging & Delivery

Packaging Details Packed in gift box
Delivery Time 1-3 working days after order confirm

Good quality TID TD-Q8 ham radio VHF 136-174MHz UHF 400-470mhz 8w handheld 8 watts walkie talkie







Main Features:

  • 8W high power professional FM transceiver
  • 48 channels in 3 groups voice channel annunciation
  • 2800mAh high capacity lithium-polymer battery
  • hands-free VOX
  • DTMF,PTT ID encoder & decoder
  • voice battery capacity indicator
  • squuelch tail elimination, busy channel lockout
  • private call/group call,remote stun/kill/active
  • CTCSS/DCS
Specification:

General
Frequency Range136~174MHz / 400~470MHz/450-520MHz
Channel Capacity48
Operating Voltage7.4V
Working temperature-20°C~ 60°C
Frequency Stability±2.5ppm
Dimension(Height×length×width)110*51*32mm
Channel Spacing12.5/25.0 KHz
weight225g



Transmitter
Power outputUHF:8W/2.5W;VHF:8W/2.5W
Modulation typeF3E
Spurious and Harmonics70dB
FM Noise45/40dB
Audio Distortion≤5%
Modulation limiting±2.5/5.0KHz
Audio response1-±3 dB



Receiver
Sensitivity≤0.30/0.20uV
Adjacent Channel Selectivity60/70dB
Intermodulation65dB
Spurious Response Rejection70dB
S/N45/40dB
Audio Power Output600mW
Audio Distortion≤5%

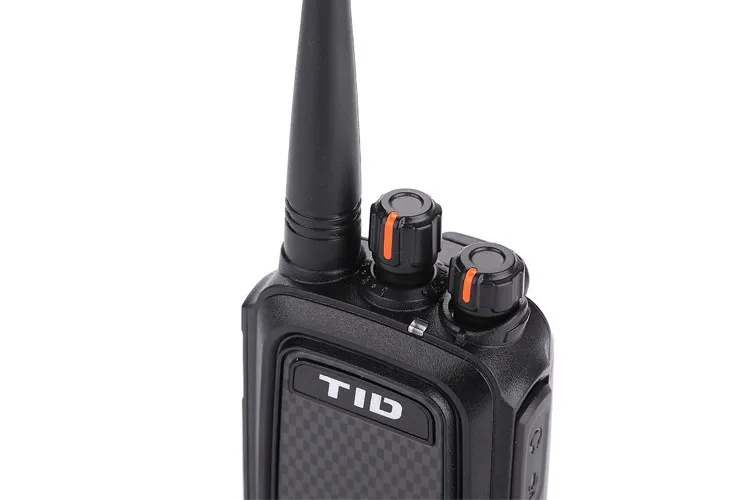

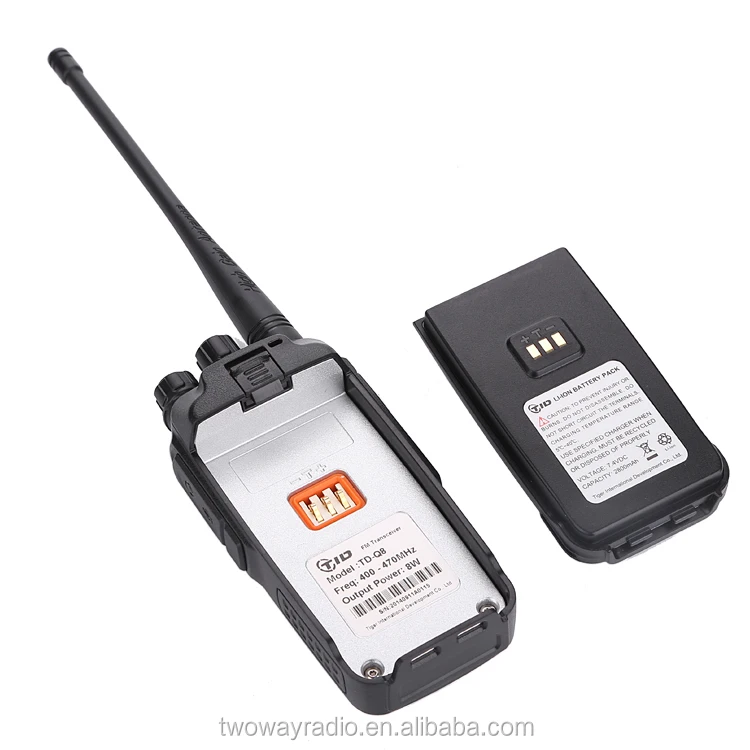

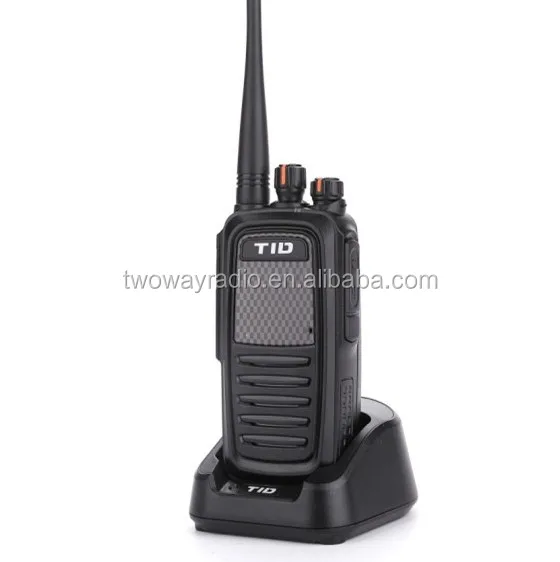

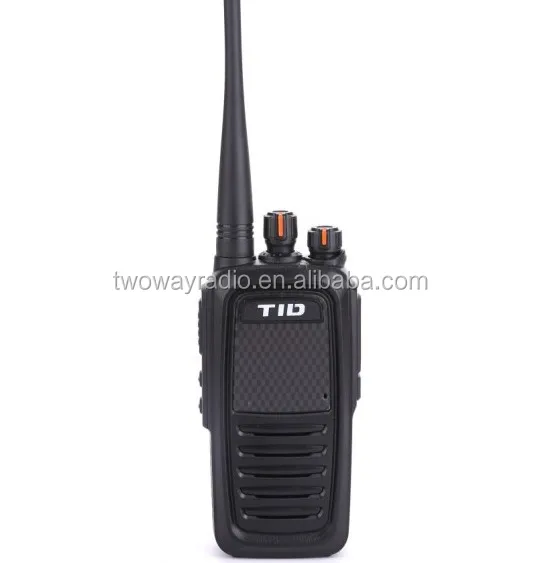

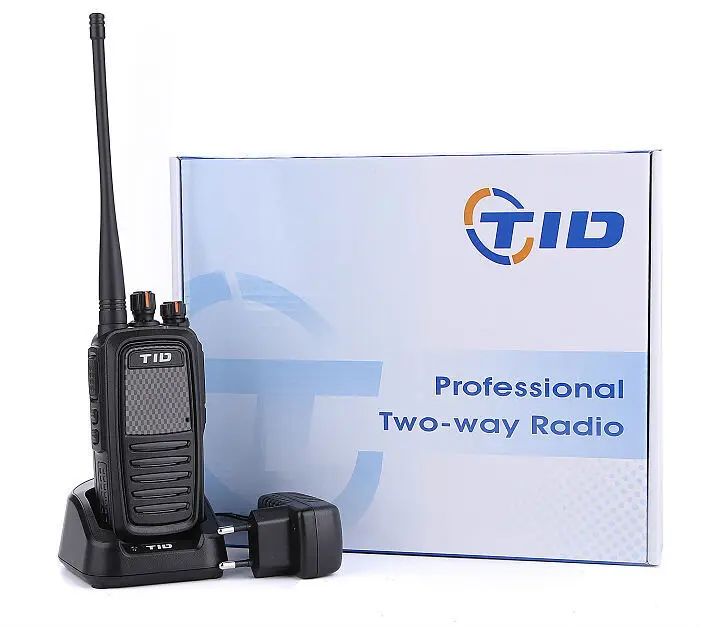

Detail Pictures:
